How to Replace a Magnetron in a Microwave: A Complete DIY Guide for Successful Repair

Ever found yourself staring at a microwave that just won’t heat your food? It’s frustrating when your trusty kitchen appliance suddenly stops working. If you’ve noticed that your microwave is making strange noises or not cooking evenly, it might be time to replace the magnetron.

This article will guide you through the process step-by-step, making it easier than you think. You’ll save money by tackling this repair yourself and get your microwave back in action in no time. Plus, you’ll gain a sense of accomplishment by fixing something with your own hands. Ready to get started?

Key Takeaways

• Understanding the Magnetron: The magnetron is a key component that generates microwaves, essential for heating food in your microwave oven. Knowing how it works aids in troubleshooting and effective replacement.
• Signs of Failure: Symptoms like insufficient heating, unusual noises, burning smells, error codes, and intermittent operation indicate a faulty magnetron and signal it’s time for a replacement.
• Preparation is Key: Prior to replacement, always unplug the microwave, discharge the capacitor, and use protective gear. A safe work environment enhances the repair process.
• Tools Required: Gather a Phillips and flathead screwdriver, multimeter, replacement magnetron, insulated wire cutters, flashlight, and work gloves to facilitate the replacement.
• Step-by-step Replacement: Follow a structured approach to replace the magnetron, including disconnecting the microwave, removing the old part, installing the new one, and securing all connections.
• Testing After Replacement: After installation, plug the microwave back in and conduct safety checks, including running a test with a cup of water to ensure proper functionality and heating.

Understanding the Magnetron

The magnetron is a crucial component of your microwave. It generates the microwaves that heat your food. Understanding it helps identify issues and replace it effectively.

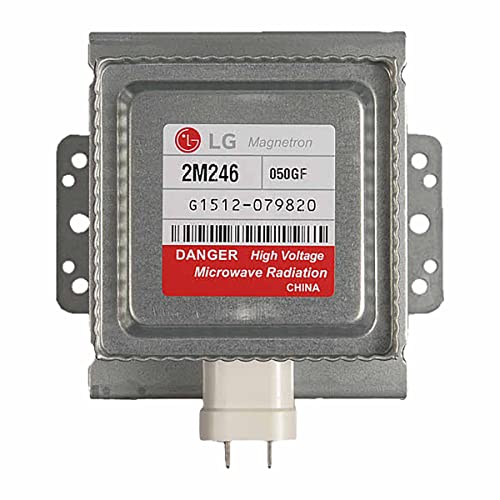

What Is a Magnetron?

A magnetron is a vacuum tube used in microwave ovens. It converts electrical energy into microwave radiation. This radiation cooks food by agitating water molecules. Typically, magnetrons operate at a frequency of 2.45 GHz, a standard frequency for heating applications.

How Does a Magnetron Work?

A magnetron works through electron movement in a magnetic field. When you turn on the microwave, electricity flows into the magnetron. This electricity energizes a filament, which emits electrons. The magnetron’s magnetic field then directs these electrons, causing them to oscillate and generate microwaves. These microwaves travel into the cooking cavity, where they penetrate food and create heat.

Understanding the functions and components of the magnetron ensures you can troubleshoot or replace it when necessary.

Signs of a Faulty Magnetron

Identifying a faulty magnetron can prevent further appliance damage and save you time and money during repairs. Watch for these signs that indicate a problem.

Common Symptoms

• Insufficient Heating: Food remains cold or unevenly heated, even after extended cooking times.
• Strange Noises: Humming, buzzing, or popping sounds occur while the microwave operates.
• Burning Smell: A burnt odor coming from the microwave indicates potential overheating within the magnetron.
• Error Codes: Modern microwaves display error codes that signal magnetron issues or failures.
• Intermittent Operation: The microwave works sporadically, turning on and off unexpectedly.

• Check the Power Supply: Ensure the microwave is connected to a functioning outlet. A tripped circuit breaker may also cause issues.
• Examine the Door Seal: A faulty door latch prevents proper operation. Close the door firmly and ensure the latch engages correctly.
• Inspect the Waveguide Cover: Look for damage or debris within the waveguide cover. Clean or replace it if necessary.
• Test Other Components: Check related components, like the high-voltage diode and capacitor. They can cause similar symptoms if faulty.
• Consult the Manual: Your microwave’s manual may provide specific troubleshooting guidance or instructions for error codes.

By recognizing these signs and following these troubleshooting steps, you can determine whether the magnetron requires replacement.

Preparing for Replacement

Before you start replacing the magnetron, take necessary precautions. Proper preparation ensures a safer and more efficient repair process.

Safety Precautions

1. Unplug the Microwave: Always disconnect the microwave from its power source to prevent electrical shocks.
2. Discharge Capacitor: Use a screwdriver with an insulated handle to short the capacitor terminals. This step discharges any stored electricity.
3. Wear Protective Gear: Use safety goggles and gloves to protect yourself from sharp edges and electrical components.
4. Work in a Ventilated Area: Ensure your workspace is well-ventilated to avoid inhaling any harmful fumes or dust.

1. Screwdriver Set: A Phillips and flathead screwdriver will help in removing screws efficiently.
2. Multimeter: Test for electrical continuity and ensure all components function properly.
3. Replacement Magnetron: Purchase a magnetron compatible with your microwave model.
4. Insulated Wire Cutters: Use these for safely cutting wires if necessary.
5. Flashlight: A flashlight aids visibility, especially in tight spaces inside the microwave.
6. Work Gloves: Protect your hands during the disassembly and installation process.

Gathering these tools and following safety measures prepares you for a successful magnetron replacement.

Step-by-Step Guide to Replacing a Magnetron

Follow these steps to effectively replace the magnetron in your microwave. Ensure you’ve completed the safety measures discussed earlier for a smooth repair process.

Disconnecting the Microwave

1. Unplug the microwave from the power source. Always ensure the appliance is completely disconnected before performing any repairs.
2. Remove the screw securing the microwave to the wall or cabinet, if applicable. It’s important to have the microwave free to work on it.
3. Detach any mounting brackets and lift the microwave off the wall or counter for better access. Use a helper if the unit is heavy.

Removing the Old Magnetron

1. Remove the outer casing by unscrewing the designated screws. This may vary by model, so check the manual for specific locations.
2. Locate the magnetron; it generally sits near the waveguide.
3. Disconnect the wires leading to the magnetron. Take note of their positions for reassembly later.
4. Unscrew the magnetron from its mount and carefully lift it out. Be cautious not to damage surrounding components during this process.

1. Position the new magnetron in the same spot as the old one. Ensure it aligns with the mounting holes.
2. Secure the magnetron using the screws removed earlier. Make sure it fits snugly.
3. Reconnect the wires, matching their previous positions. Double-check for secure connections to prevent malfunctions.
4. Reattach the outer casing by screwing it back into place. Ensure all screws are tightened for safety.
5. Place the microwave back onto the wall or counter, reinstating any previously removed brackets or screws.

After installation, plug the microwave back in and test its functionality. Following these steps ensures a successful magnetron replacement and restores your microwave’s heating ability.

Testing the Microwave After Replacement

Testing the microwave after replacing the magnetron ensures everything functions correctly. Follow these essential steps for a thorough evaluation.

Safety Checks

1. Reconnect Power: Plug the microwave back into the power source. Make sure there’s no loose connection.
2. Inspect Exterior: Check for any visible damage on the outer casing. Ensure all screws and components are securely fastened.
3. Examine Door Seal: Ensure the door closes properly. A damaged seal can cause serious safety hazards.
4. Avoid Overloading: Keep the initial test simple. Start with a small, microwave-safe item to prevent overheating or malfunction.

1. Run a Test: Place a cup of water in the center of the microwave. Microwave it for two minutes on high power.
2. Check Heating: After two minutes, feel the side of the microwave. It shouldn’t be excessively hot. Then, carefully check the water temperature. Proper heating indicates functionality.
3. Listen for Noises: During operation, listen for any unusual sounds such as buzzing or grinding. These could indicate issues with the magnetron or other components.
4. Monitor for Error Codes: If your microwave’s display shows error codes, refer to the user manual for troubleshooting.
5. Observe Cooking Times: Test with different food items. They should heat evenly and at appropriate times, confirming reliable performance.

Following these steps helps ensure that your microwave operates safely and effectively after replacing the magnetron.

Conclusion

Replacing a magnetron in your microwave can feel like a daunting task but it’s definitely doable with the right tools and guidance. By following the steps outlined in this guide you can save money and extend the life of your appliance.

Remember to prioritize safety throughout the process and take your time to ensure everything is done correctly. Once you’ve completed the replacement don’t forget to test your microwave to make sure it’s working as it should.

With a little effort you’ll be back to enjoying your favorite meals in no time. Happy microwaving!

Frequently Asked Questions

What is a magnetron, and why is it important in a microwave?

The magnetron is a crucial component in a microwave that generates microwaves to heat food. It converts electrical energy into microwave radiation at a frequency of 2.45 GHz. Understanding its function helps in troubleshooting heating issues and deciding whether it needs replacement.

What are the common signs of a faulty magnetron?

Common signs of a faulty magnetron include insufficient heating, unusual noises, burning smells, error codes, and intermittent operation. Recognizing these symptoms can prevent further damage to your microwave and save time and money on repairs.

How can I troubleshoot a microwave that isn’t heating properly?

To troubleshoot a microwave, check the power supply, inspect the door seal, examine the waveguide cover, and test other components. Consulting the microwave’s manual can also provide helpful guidance. If issues persist, the magnetron may need replacement.

What safety precautions should I take when replacing a magnetron?

When replacing a magnetron, ensure to unplug the microwave, discharge the capacitor, wear protective gear, and work in a well-ventilated area. These precautions help ensure a safer and more efficient repair process.

What tools do I need to replace a magnetron in a microwave?

Essential tools for replacing a microwave magnetron include a screwdriver set, multimeter, replacement magnetron, insulated wire cutters, flashlight, and work gloves. Having these tools ready can make the replacement process smoother and more effective.

How do I test my microwave after replacing the magnetron?

After replacing the magnetron, plug the microwave back in and perform a test by microwaving a cup of water. Check for proper heating, unusual noises, and error codes. This helps confirm that the microwave is functioning safely and effectively.
